PERT CPM chart - how to use citical path analysis in project planning?

Each project has its own dynamics – some tasks can be carried out in parallel, while others have to wait their turn. In addition, there are limited resources, time uncertainties, and deadline pressures. As a result, even a well-thought-out schedule can quickly lose its coherence. To prevent this, it is worth using tools that help you see the whole plan from a bird’s eye view and manage it effectively. One of them is the PERT CPM chart, which combines two extremely useful methods of analyzing time and dependencies between tasks. Sounds complicated? Everything will become clear in a moment.

In this article you will learn: What a PERT CPM chart is and how it helps in project planning. How PERT and CPM methods complement each other to manage time, risk, and resources. How to identify the critical path and use it to prioritize tasks. How to estimate task durations using probabilistic (PERT) and deterministic (CPM) approaches. How PERT CPM charts improve project predictability, transparency, and decision-making.

What is a PERT CPM chart and why does it combine two methods?

Project planning always has one key challenge: how to organize the sequence of activities and resources in order to achieve the goal within a predetermined time frame. From a practical point of view, this means that it is necessary to manage not only the tasks themselves but also the relationships between them, potential delays, and risks resulting from uncertainty.

The PERT CPM chart allows you to organize these elements and turn them into a coherent analytical project model. It was developed due to the need to find a balance between flexibility and control. As a result, the schedule is no longer just a dry list of tasks and becomes a logical structure that supports decision-making, problem prediction, and project resource management as well as stakeholder expectations.

Two approaches to project planning are integrated in the PERT CPM chart: probabilistic PERT and deterministic CPM. The former allows you to predict the duration of activities with a certain degree of uncertainty. This is invaluable for more complex and dynamic undertakings, especially innovative or research projects. CPM, on the other hand, provides a clear picture of which tasks determine the project completion date and where the hot spots are.

Combining these two methods gives project managers the ability to simultaneously consider risk and accurately identify the critical path. The pert cpm chart is simply a perfect duo that blends the analytical precision of CPM and the probabilistic approach of PERT. In practice, PERT helps to deal with uncertainty, while CPM indicates which tasks determine the duration of the entire project. Together, they form a tool that allows you to predict, plan, and optimize a project from A to Z.

Side effects? Fewer surprises and more informed management decisions! No wonder that the PERT CPM chart is so successfully used in both large infrastructure projects and smaller but demanding IT, marketing, and R&D ventures. Realistic planning and active change management have never been so easy!

PERT (Program Evaluation and Review Technique) – definition

PERT (Program Evaluation and Review Technique) has its roots in the 1950s, when it was developed for the US Navy, which was working on a ballistic missile program at the time. And although it sounds like the plot of a spy movie, today this method is also used in… civilian projects.

The PERT technique is based on the assumption that the duration of many tasks is not known in advance and depends on factors that cannot be fully predicted. That is why each activity in PERT is described using three estimates:

• optimistic
• most likely
• pessimistic

Based on this, the expected duration of the task is calculated. All this is done in order to ultimately build a plan that takes into account variability and risk, preparing for different scenarios. The key to success here is to present the project as a network diagram, in which the nodes correspond to individual tasks and the arcs represent the connections between them. This way, the project manager can clearly see how subsequent tasks affect each other and where potential delays may occur. This allows them to assess time-related risks, calculate the probability of completing the project on time, and identify areas of the project that require additional control.

CPM (Critical Path Method) – critical path method

On the other hand, CPM (Critical Path Method) is a more “hard-line” approach, based on the deterministic assumption that the duration of tasks is known. This method allows you to precisely determine the critical path, i.e., the longest sequence of related activities that determines the minimum duration of the project. Psst! All tasks on this path require special supervision. A delay in any of them automatically postpones the completion date of the entire project.

It is precisely in the analysis of the critical path that the power of CPM lies. With its help, you can quickly identify activities with a time margin of zero, plan the optimal allocation of resources, and identify areas where it is worth speeding up the pace when it comes to shortening the schedule. CPM therefore provides the project manager with clear information on:

• priorities
• areas requiring close supervision
• opportunities for potential optimization

This tool is also used for so-called crashing, i.e., deliberately shortening the duration of key tasks by changing the organization of work or increasing resources.

Although the CPM method is primarily used in construction, infrastructure, and technical projects, its logic works in any industry where predictability plays a key role and precision, stability, and control over the schedule are what matter most.

Why are PERT and CPM used together?

In projects where time variability is high but precise prioritization is necessary, PERT or CPM alone may not be sufficient. Combining these two methods provides a more complete picture of the project – PERT brings flexibility and the ability to incorporate time variability, while CPM offers clarity, precision, and the ability to identify the most critical (from a scheduling perspective) tasks.

When both solutions are used simultaneously, the project team gains a tool that allows for both realistic planning and active change management. What else do companies appreciate about this approach? First and foremost, it facilitates risk and project time management, as well as effective problem prediction. As if that were not enough, the simultaneous use of PERT and CPM increases project transparency and, consequently, stakeholder confidence.

PERT and CPM are simply more effective together. PERT teaches humility in the face of uncertainty, and CPM teaches consistency in critical path analysis. Combined, they allow you to:

• precisely define milestones
• make decisions based on actual data
• understand time risks
• increase project transparency for stakeholders
• optimally allocate resources
• predict the impact of delays on the entire schedule

In practice, this means better predictability, stronger resilience to change, and greater confidence that scheduling decisions are based on hard data rather than intuition. After all, instead of just looking at what might happen, it’s worth considering what must come to pass and is inevitable.

Basic elements of a PERT CPM chart

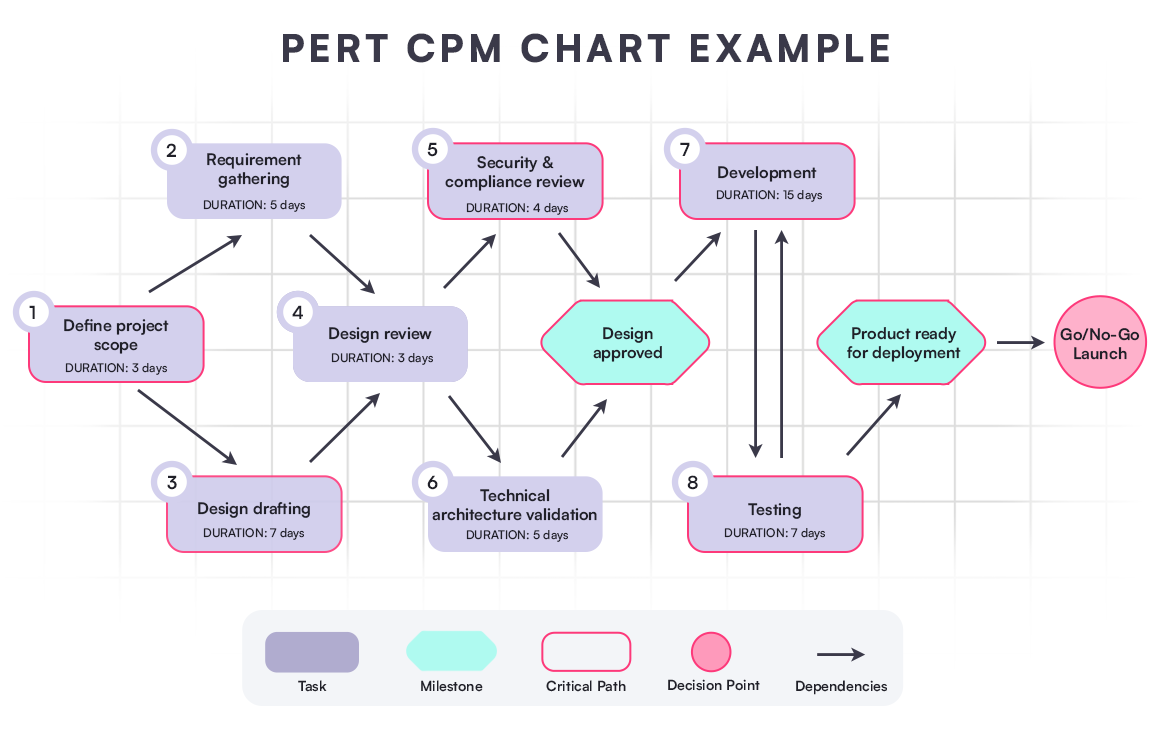

PERT CPM is based on a network diagram that shows a project not as a traditional list of tasks but as an interconnected structure of activities.

At the heart of the PERT CPM chart are nodes, or points that represent individual tasks or stages. These organize the project into a logical whole and make it easy to see what actually needs to happen in sequence and what can be done in parallel.

The nodes are connected by arcs that show the direction of dependencies. Thanks to them, it is clear which tasks are dependent on previous ones and which can be started immediately, without waiting for others. The network nature of the chart allows the project to be analyzed not only linearly but also spatially, showing the entire chain of connections and dependencies between individual activities.

Another element of the PERT CPM chart is the duration of tasks. In PERT, each task is described by three estimates, which allows for different scenarios of work progress to be taken into account. In CPM, on the other hand, a single, stable, deterministic time is used. Comparing them allows for a better understanding of how the schedule will behave in different – more or less favorable – conditions.

One of the most important points on the PERT CPM chart is the critical path, i.e., the longest chain of tasks that determines the duration of the entire project. The so-called critical path method makes it clear which tasks require priority treatment (any delay will automatically postpone the completion of the project!). On the contrary, activities outside the critical path have a time reserve (the so-called slack), giving a certain margin of freedom. This is invaluable information during daily schedule management, informing you how far you can skip a particular activity without violating the deadline.

All these elements form a diagram that allows you to organize your project in a clear and logical way. As a result, the PERT CPM chart helps you understand the structure of the project faster and make informed, logical, and fully justified schedule decisions.

While this structure may seem a bit complicated at first glance, each element has a clearly defined function and supports the subsequent analysis of the schedule.

Differences between PERT and CPM

Although PERT and CPM can go hand in hand, their roles in project planning are different, and the assumptions on which they are based are slightly varied. Both methods help to streamline the schedule, monitor work progress, and predict the impact of possible changes, but their application clearly differs from each other.

One difference can be seen in the approach to the project structure itself. CPM clearly distinguishes between critical and non-critical activities, assigning a specific time reserve to the latter. This allows the project manager to identify which tasks require priority treatment. PERT does not make this distinction, focusing instead on a holistic view of the schedule and its susceptibility to various time scenarios.

Another difference stems from which aspects of the project are analyzed. PERT primarily focuses on time – its main goal is to illustrate how variability and uncertainty affect the schedule. CPM, on the other hand, combines time with costs, which is why it is often used where financial issues are a big deal. CPM more easily identifies which activities can be accelerated and at what cost and where it is worth investing additional resources to reduce delays.

PERT: probabilistic estimation (three time scenarios)

The key difference also concerns the nature of both methods. PERT is a probabilistic approach, used especially when tasks are difficult to estimate unambiguously.

This works well in research and innovation projects and in ventures where it is difficult to estimate exactly how long each stage will take before starting.

In this model, each activity is assessed from three perspectives: optimistic, realistic, and pessimistic. The purpose of this is to ensure that the schedule better reflects the actual time risk.

CPM: deterministic estimation (single time)

CPM, in turn, is based on a deterministic approach, assuming that a certain task duration is available. From a practical point of view, this works well in projects with a high degree of repeatability and predictability, such as construction, technical, or infrastructure projects.

Here, the quality of planning is based on fixed data, and the analysis focuses primarily on identifying the critical path and managing costs.

	PERT	CPM
Nature of the method	Probabilistic approach, takes uncertainty into account	Deterministic approach, based on fixed times
Time estimation	Three scenarios: optimistic, most likely, pessimistic	One predetermined time
Role in risk planning	Focuses on assessing the likelihood of completing the project on time	Emphasizes time and cost optimization
Critical path	Present, but without division into critical and non-critical tasks	Clearly defined and crucial in analysis
Biggest advantage	Facilitates work under uncertainty	Provides precise control over the schedule
Application	Research, development, and innovation projects	Technical, construction, and repetitive projects

Comparison table: PERT vs. CPM

In a nutshell, PERT is best suited where task durations are yet to be predicted, while CPM is best suited where durations are already known or can be reliably determined. For this reason, the two approaches complement each other perfectly – one focuses on uncertainty, while the other concentrates on precision, allowing you to kill two birds with one stone!

Key concepts in the PERT CPM method

When working with the PERT CPM method, it is useful to know a few basic concepts that arise when creating a network diagram and during subsequent schedule analysis. Crashing and fast tracking are only some of them. Want to learn more?

Knowing them will not only make working with PERT CPM easier but above all, more informed, and decision-making related to the schedule will become much simpler. It also facilitates the identification of risks and effective network project planning in various scenarios. Here are the most important definitions!

Concept	What does it actually mean?	Why is it so important?
Critical Path	The longest sequence of tasks that determines the minimum duration of the project	It determines the entire schedule – there is no room for delays here.
Float Time	The amount of time by which a task can be delayed without affecting the project deadline	It helps manage priorities and effectively shift resources.
Crashing	Shortening the duration of selected tasks by increasing resources (i.e., people, equipment)	It allows you to speed up the project when priorities or deadlines change.
Fast Tracking	Performing tasks in parallel that were originally supposed to be performed one after another	Allows you to shorten the schedule without additional resources, although it increases the risk of errors and corrections.

The cornerstone of both methods is the network diagram. It refers to a graphical representation of tasks and the relationships between them, which allows you to view the project as a logical network of activities rather than just a list. Thanks to the network diagram, you can see at a glance which tasks must precede others and which can be performed in parallel. The network diagram also reveals potential critical points.

Based on the network structure, a Gantt chart is often created, which is a more linear, calendar-based way of presenting the schedule. Project management with Gantt chart is invaluable from the team and stakeholder perspective, and PERT and CPM analyses provide data that enable its accurate preparation.

Making sure the network diagram is accurate, complete, and based on the actual work structure also starts with WBS, which is a hierarchical breakdown of the project into smaller, easier-to-manage tasks. Only after organizing the scope like this, can you move on to analyzing time dependencies and determining the critical path.

How to create a PERT CPM chart step by step?

The creation of a PERT CPM chart begins with a detailed definition of the scope and structure of the project. The recommended approach is to perform this task based on the WBS, i.e., a list of tasks broken into smaller elements. Next, the dependencies between individual activities are determined, their predecessors and successors are identified, and data on duration (one in the case of CPM or three in PERT) is collected. In this way, a network diagram can be constructed, forming the basis for calculations.

What’s next? It’s simple! The following step is to determine the earliest and latest start and end times for each activity, as well as to define the critical path. Only after this has been determined can you analyze time reserves, check the schedule’s resilience to changes, and even create a more detailed Gantt chart.

Although this entire process requires careful preparation, it is invaluable support during subsequent project management. To make this task a little less daunting, we’ve prepared a short cheat sheet below on how to create PERT CPM chart step by step!

Step 1. Identify all project tasks

Step 2. Connect them in a network diagram, keeping dependencies in mind.

Step 3. For each task, specify three time estimates in PERT and one duration in CPM.

Step 4. Calculate the expected duration of tasks (PERT).

Step 5. Determine the critical path – the longest chain of dependent tasks.

Step 6. Determine the time reserves for tasks outside the critical path.

Step 7. Create a project schedule and apply it, for example, to a Gantt chart.

Three-point estimation method in PERT

One of the fundamental principles of the PERT method is the assumption that the duration of many tasks is not constant but depends on many variables that unfortunately cannot be predicted with precision. To account for this uncertainty, each activity is estimated based on three values:

• optimistic time (O) – the shortest possible time to complete the task, assuming exceptionally favorable conditions
• most likely time (M) – a realistic estimate of how long it will take to complete the activity under standard circumstances
• pessimistic time (P) – the maximum duration of the activity, assuming that difficulties will arise that will slow down its completion

Combining these three values is an effective way to create a PERT project schedule that is more resilient to variability. PERT uses a simple yet effective formula:

(O + 4M + P) / 6

The resulting value is the average duration of the task, which best reflects the reality of the project and takes into account both favorable scenarios and potential complications that may hinder the project’s implementation.

Critical path analysis – what you need to know?

The critical path is not only the most significant part of the schedule but also a tool for managing the entire project. Its analysis allows you to determine which tasks require special control, where to strengthen resources, and what delays can realistically affect the project’s completion date.

Calculating critical path is also the basis for identifying bottlenecks and activities whose reduction can bring the greatest time savings. In practice, critical path analysis is used in both classic and agile projects, i.e., wherever dependencies between tasks play an important role.

Schedule optimization using PERT CPM

PERT CPM analysis is a solid basis for schedule optimization to finally be within reach! On this basis, you can:

• gain project slack time/ float time
• transfer resources to critical tasks
• reduce time risk
• eliminate inefficiencies caused by improperly set dependencies
• test different time scenarios

It’s a simple way to make your schedule more deviation-proof and realistic!

Practical applications of PERT CPM chart

The PERT CPM method allows projects to run like clockwork, which is useful wherever the relationship between tasks and time is important. In particular, it is used in IT, research and development, construction, manufacturing, and logistics projects.

In addition, the PERT CPM chart is ideal for marketing, event, and implementation activities. In short, wherever a project has many dependencies and requires a predictable schedule. Network analysis is an invaluable tool that enables both efficient work organization and control over its progress.

FlexiProject and the PERT CPM method

Modern project planning tools such as FlexiProject are a bull’s-eye for automatically leveraging the benefits offered by PERT and CPM. This intuitive project planning system allows you to create dependencies between tasks in accordance with professional planning standards. Generating network diagrams that support project structure analysis is now easier than ever before.

Furthermore, FlexiProject automatically determines the critical path and time reserves. This allows the project manager to focus more on decision-making rather than manual calculations.

Defining dependencies between tasks

FlexiProject allows you to precisely define relationships such as:

• FS (finish-to-start)
• SS (start-to-start)
• FF (finish-to-finish)
• SF (start-to-finish)

All this is done to ensure that the network diagram reflects the logic of the project implementation as accurately as possible. Psst! Properly defined dependencies are the foundation of a correct PERT CPM analysis, and FlexiProject provides useful tools that facilitate their configuration and verification, such as the FS/SS/FF/SF dependency editor, dragging tasks on the timeline, network diagram preview, and much more!

Automatic critical path calculation

Automatic critical path calculation is one of the most practical features of FlexiProject. The system monitors schedule changes, updates time reserves, and immediately flags tasks that affect the project completion date. As soon as a change (even the smallest one) appears in the schedule, FlexiProject automatically updates the project structure and indicates which activities have become critical and which have gained or lost reserve.

This way, managers have no doubts about which areas require the most attention. They always have an overview of the current situation and can quickly respond to delays before they escalate into a real problem.

Summary: PERT CPM as the foundation of professional project planning

As you can see, the PERT CPM chart is one of the most important tools a professional project manager can have at their disposal. This solution combines the flexibility of a probabilistic approach with the precision of deterministic critical path analysis. It is a solid foundation for building realistic and effective schedules!

Regardless of the industry or scale of the project, this method allows you to see the entire schedule at a glance, anticipate risks, improve the plan, and, above all, meet deadlines. All this so that you can run your project with greater confidence and make decisions comfortably at every step, without unnecessary stress.
